3M 08458 Pillar Foam Nvh | AC2KDF 2KUU5

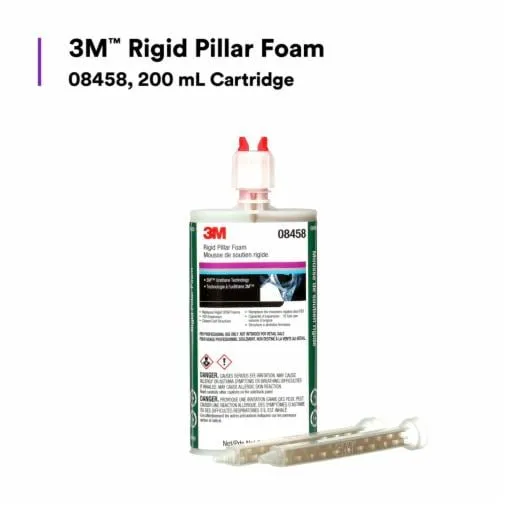

3M 7100004037 08458 Rigid Pillar Foam, 200 mL Cartridge

Item: AC2KDF Model: 7100004037Cross Ref: 2KUU5 / 08458
14 In Stock

Ships within 2 days via

SGD 230.21 /unit (inc. GST)
Add To Cart
Request a Quote
FREE delivery on orders over SGD 200

Payment

Product Specifications:

ItemPillar Foam, NVH
Container Size200 mL
Cure Time60 min.
Number Of Cases6
Type2 Part Urethane
Base TypeUrethane
ColorBrown
Compatible Surface MaterialMetal
Includes(2) Nozzles
Number Of Components2
Product TypeFoam Filler
Standards29 CFR 1910.1200, ANSI, EU REACH, EU ROHS, EU ROHS PHTHALATES, OSHA
Working Time1 min.

Shipping Info:

Ship weight (kg) 0.36
Ship height (cm)5.08
Ship length (cm)25.4
Ship width (cm)15.24
HS code3909505000
Country of OriginUS

Product Details:

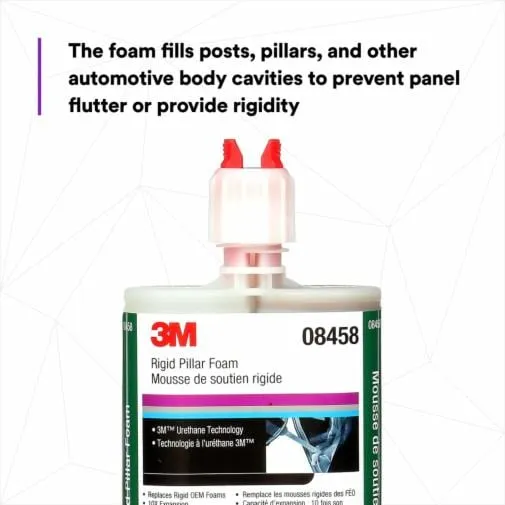

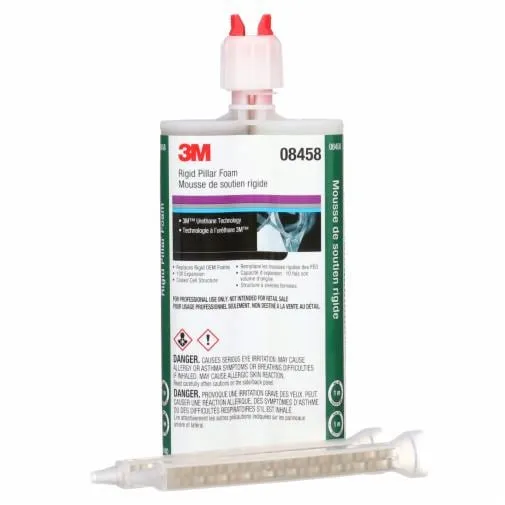

3M 08458 pillar foam (NVH) is a two-part urethane foam material ideal for absorbing noise, vibration and harshness. It can be used as a replacement for OEM rigid nonstructural foam to fill cavities in automotive applications . This NVH foam comes in a 200 ml cartridge that expands to approximately 225 cubic inches foam volume, using manual & pneumatic 3M applicators.

Features:

  • 3M 08458 Pillar NVH Foam becomes rigid after full cure for professional collision repair use.
  • This can also act as a sound-deadening & vibration-reducing material in automobile applications.

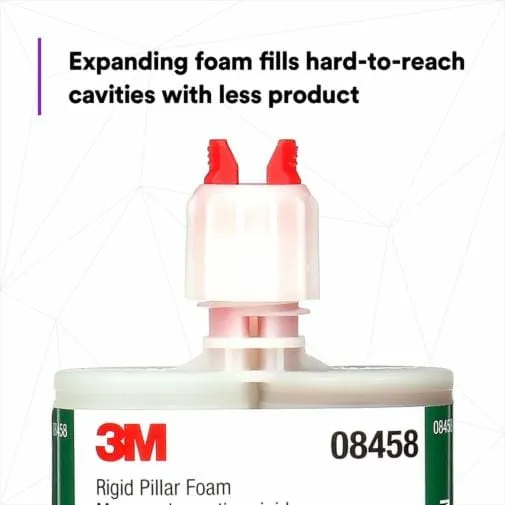

  • This 3M NVH foam shows expanding properties to effortlessly flow towards hard-to-reach cavities.

Compatible Accessories:

  • 3M 08571 or 08117 Manual Applicators and 09930 Pneumatic Applicator: These applicators are used to squeeze the 3M NVH foam and apply it on required surfaces.
  • 3M 08193 & 08194 Static Mix Nozzles: These nozzles fit over the 3M 08458 NVH foam to dispense over the desired area.

Frequently Asked Questions:

Q. What are the performance characteristics of 3M 08458 Pillar Foam NVH?

A. Typical performance characteristics at ambient air & substrate temperature of 73 degrees F (23 degrees C) are:

  • Foam Time: 1 minute
  • Work Time: 5 minutes
  • Cure Time: 1 hour

Q. What do the two parts of 3M 08458 Pillar Foam NVH contain?

A. One part of this 3M 08458 Pillar NVH foam contains white-coloured Urethane while another contains amber / brown coloured curative liquid. Both these liquids turn solid only after mixing.

Q. What is the service temperature of this 3M 08458 Pillar Foam NVH?

A. -20 to 180 degrees F (-20 to 82 degrees C)
