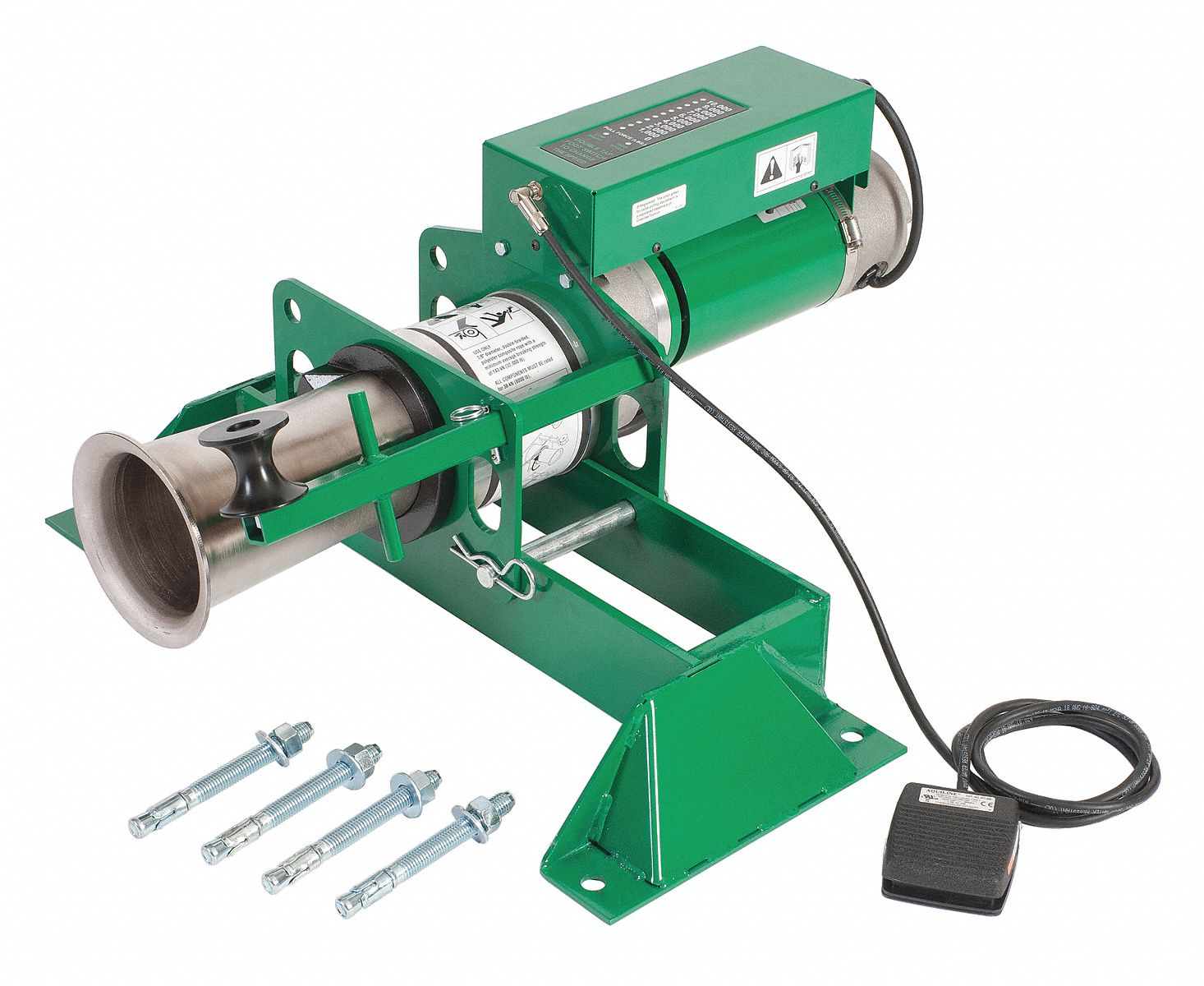

| Item | Cable Puller |
|---|---|
| Amperage Rating | 20A |
| Application | Electrical Cable Pull |
| Boom Length | Not Applicable |
| Cable Capacity | 1200 Ft. With (2) 90° Bends, 3 x 1000 Mcm Copper Cables, 4 x 500 Mcm Copper Cables, 4 x 750 Mcm Copper Cables, 750 Ft. With (4) 90° Bends, 800 Ft. With (3) 90° Bends |
| Cable Type | Electrical Cable |
| Capacity | The No-Load Low Speed Is 9 Ft./Min. And Can Be Used On Loads Up to 8000 Lbs. Where The Speed Will Be 6 Ft./Min., Or A Momentary Peak Capacity Of 10000 Lbs. |
| Current | 20A |
| Display Qty | 1 |
| Features | Removable Foot Pedal |
| Frequency | 1 Hz |
| Function | For Cable Pulling |
| Hp | 1 1/2 hp |
| Includes | Floor Mount, Force Gauge |
| Load | 0 Lbs. to 6500 Lbs. Continuous Operation, 6500 Lbs. to 8000 Lbs. 15 Minutes On/15 Minutes Off, 8000 Lbs. to 10000 Lbs. Momentary |
| Max. Continuous Pulling Force | 6500 lbf. |
| Max. Momentary Pulling Force | 10000 lbf. |
| Motor | Two Speed |
| Mounting | Floor Mount |
|---|---|
| Mounting Type | Floor Mount |
| No Load Pulling Speed | 16 FPM |
| Overall Height | 6 3/4" |
| Overall Length | 11 1/2" |
| Overall Width | 26" |
| Phase | Single-Phase |
| Power Source | Corded |
| Pulling Force | 9986 lbs. |
| Pulling Speed At Max. Continuous Pulling Force | 7 FPM |
| Required Pulling Rope Diameter | 7/8" |
| Required Pulling Rope Type | Double Braided Polyester Composite |
| Tool Type | Cable Puller |
| Tool Weight | 88 lbs. |
| Type | Puller Assembly |
| Use With | 7/8" Dia. (22.2mm) Double-Braided Polyester Composite Rated At 32000 lbs. (142kN) Min. Breaking Strength |
| Voltage | 115V AC |
| Voltage Rating | 115V |
| Height (cm) | 148.59 |
|---|---|
| Length (cm) | 74.93 |
| Width (cm) | 60.96 |
| HS Code | 8425390100 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 192.6 |
| Style | Model | Material | Type | Boom Length | No Load Pulling Speed | Tool Weight | Max. Momentary Pulling Force | Hp | Capacity | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | UT10-2S | - | Puller Assembly | Not Applicable | 16 FPM | 86 lbs. | 10000 lbf. | 1 1/2 hp | The No-Load Low Speed Is 9 Ft./Min. And Can Be Used On Loads Up to 8000 Lbs. Where The Speed Will Be 6 Ft./Min., Or A Momentary Peak Capacity Of 10000 Lbs. | SGD 20946.05 | |
| B | MVB | Rubber, Plastic | Cable Puller | - | - | - | - | - | - | SGD 16182.01 | |
| C | 6901 | - | Puller Assembly | Not Applicable | 16 FPM | 88 lbs. | 10000 lbf. | 1 1/2 hp | The No-Load Low Speed Is 9 Ft./Min. And Can Be Used On Loads Up to 8000 Lbs. Where The Speed Will Be 6 Ft./Min., Or A Momentary Peak Capacity Of 10000 Lbs. | SGD 23690.36 | |
| D | 6906 | - | Puller Assembly | 20 ft. | 16 FPM | 408 lbs. | 10000 lbf. | 1 1/2 hp | The No-Load Low Speed Is 9 Ft./Min. And Can Be Used On Loads Up to 8000 Lbs. Where The Speed Will Be 6 Ft./Min., Or A Momentary Peak Capacity Of 10000 Lbs. | SGD 36275.69 | |
| E | 430-500 | Plastic | Twine, Spiral Wrap, Tracer | - | - | - | - | - | - | SGD 51.02 | |
| F | G3 | - | Puller Assembly | 6 ft. | 97 FPM | 123 lbs. | 2000 lbf. | 1 hp | Speed (High) No Load @ 97 Ft./Min. (30 M/Min.) 500 Lb @ 59 Ft./Min. (18 M/Min) 1000 Lbs. @ 36 Ft./Min. (11 M/Min.) Speed (Low) No Load @ 41 Ft./Min. (12 M/Min.) 1000 Lbs. @ 21 Ft./Min. (6 M/Min) 2000 Lbs. (Intermittent? 5 Min. On, 20 Min. Off)@ 13 Ft./Min. (4 M/Min.) | SGD 12040.07 | |
| G | G6 | - | Electric | 7.5 ft. | 90 FPM | 252 lbs. | 6000 lbf. | 1 1/2 hp | - | SGD 22340.31 |
