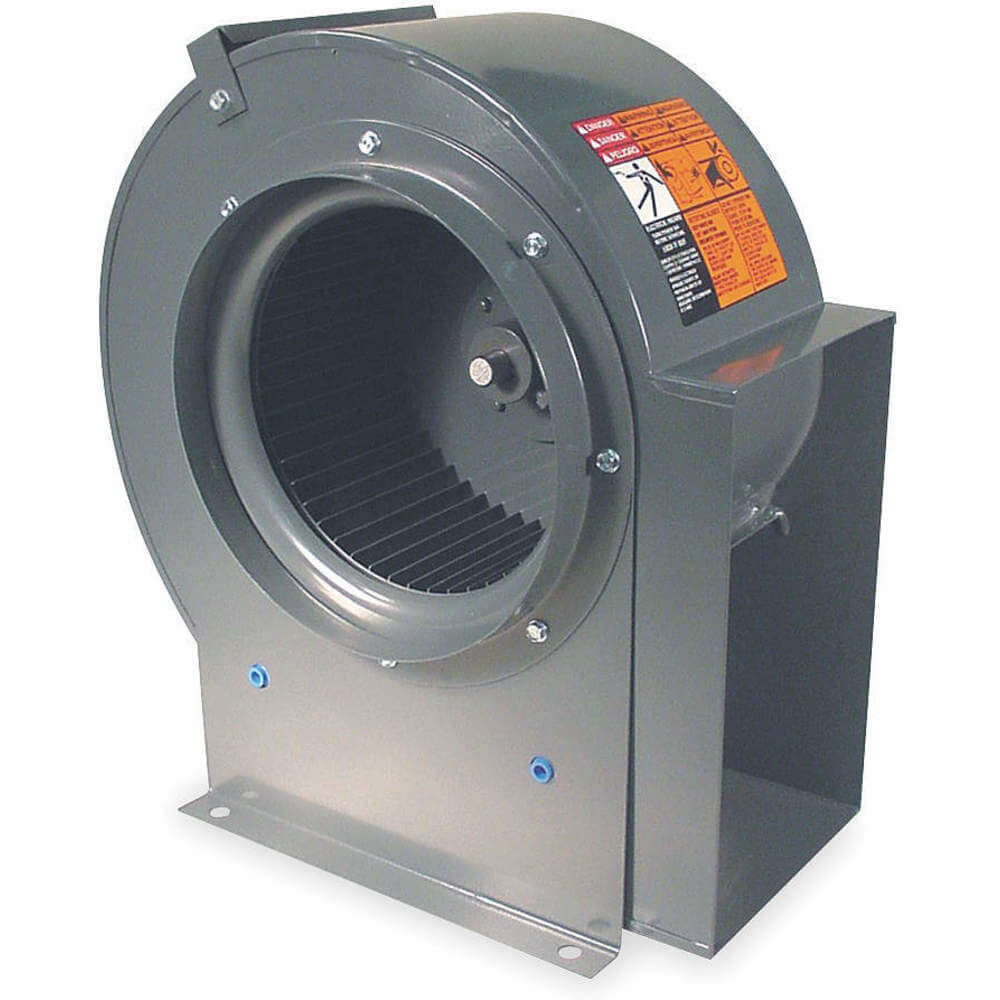

| Item | Blower |
|---|---|
| Application | Air Conditioning, Central Duct Ventilation, Exhausting, Industrial Use, Processing |
| Assembly | Unassembled |
| Bearing Type | Ball |
| Depth | 22" |
| Discharge Height | 13 1/4" |
| Discharge Height (in.) | 13.25" |
| Discharge Position | Bottom Angular Up, Bottom Horizontal, Down Blast, Top Angular Down, Top Angular Up, Top Horizontal, Up Blast |
| Discharge Width | 9 5/8" |
| Discharge Width (in.) | 9.625" |
| Drive Package With Motor Included? | No |
| Drive Type | Belt Drive |
| Electrical Connection | Ground Wire |
| Features | Adjustable Top Motor Mount Moves From Top To Rear Mounting, Continuous-Duty Blower Has Adjustable Mounting And Discharge Position, Easily Altered To Required Discharge Position By Drilling New Motor Mounting Holes, Rotating Blower Housing On Base, And Bolting In Position, High Volume At Low Velocity, Motor Is Resilient-Mounted |
| Finish | Baked Polyester Epoxy |
| Frequency | 60 Hz |
| Height | 27" |
| Housing Color | Gray |
| Housing Material | Steel |
| Housing Material Finish | Gray Baked Polyester Epoxy |
| Includes Drive Package | No |
| Includes Motor | No |
| Inlet Dia. | 13 1/4" |
| Inlet Diameter | 13 1/4" |
| Manufacturer Warranty Length | 1 yr. Limited |
| Material | Steel |
| Max. Ambient Temp. | 104°F |
| Max. Inlet Temp. | 180°F |
| Max. Motor Hp | 1/2 hp |
|---|---|
| Maximum Airflow | 2100 CFM |
| Maximum Fan Speed | 875 RPM |
| Maximum Static Pressure | 1 in. wc |
| Minimum Airflow | 1460 CFM |
| Minimum Fan Speed | 875 RPM |
| Motor Enclosure Design | Open Dripproof |
| No. Of Inlets | 1 |
| Number Of Discharge Positions | 7 |
| Outlet Dia. | Not Applicable |
| Outlet Height | 13 1/4" |
| Outlet Shape | Rectangular |
| Outlet Type | Non Flanged |
| Outlet Width | 9 5/8" |
| Overall Depth | 22" |
| Overall Height | 27" |
| Overall Width | 15" |
| Rotation | CW |
| Shaft Dia. | 3/4" |
| Thermal Overload Protection | Yes |
| Type | Less Drive Package |
| Wheel Dia. | 12 1/2" |
| Wheel Material | Steel |
| Wheel Type | Forward Curved |
| Wheel Width | 6 1/2" |
| Width | 15" |
| standard | NEC, OSHA |
| Height (cm) | 68.58 |
|---|---|
| Length (cm) | 55.88 |
| Width (cm) | 38.1 |
| HS Code | 8414596060 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 27.54 |
