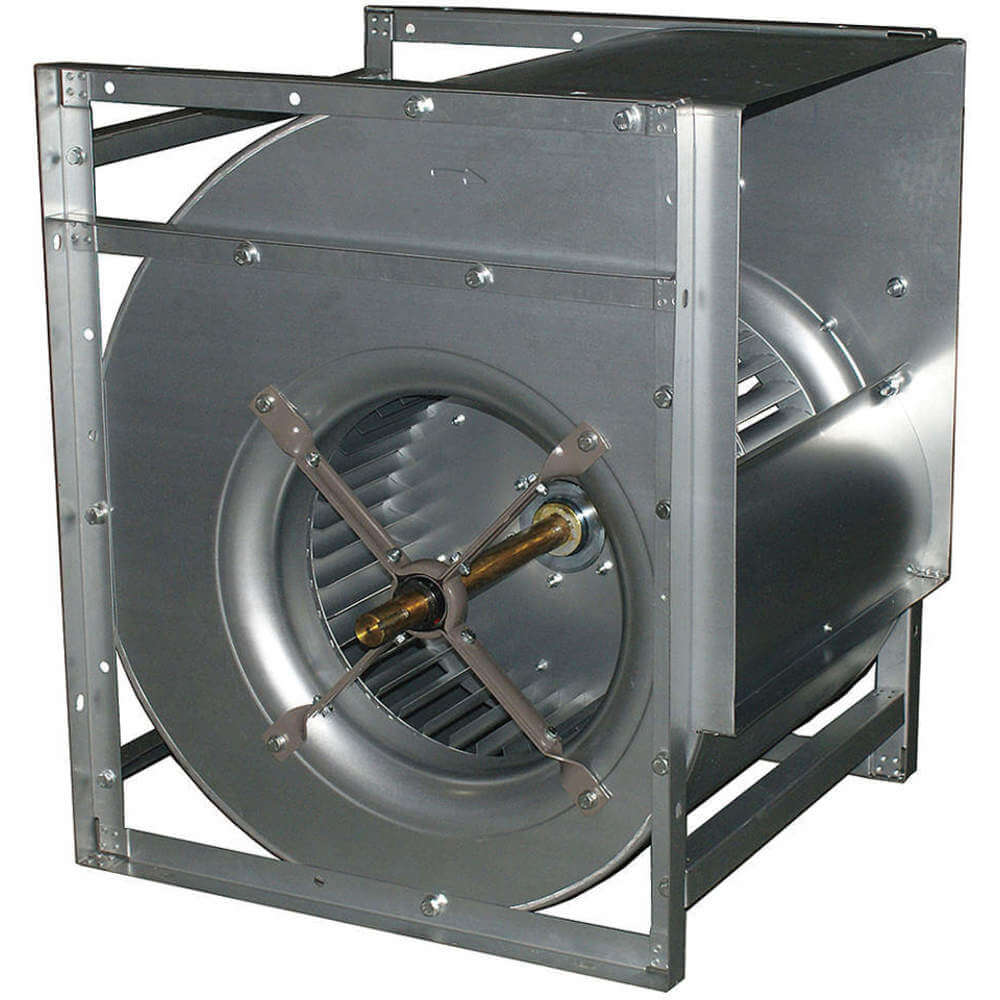

| Item | Blower |
|---|---|
| Amca Fan Class | Not Rated |
| Application | Air Conditioning, Exhausting, General Ventilation, Heating |
| Assembly | Unassembled |
| Bearing Type | Pillow Block Ball |
| Brake Horsepower | Not Applicable |
| Chemical Resistant | No |
| Compatible Speed Control | Not Applicable |
| Corrosion Resistant | Yes |
| Current | Not Applicable |
| Depth | 40" |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Drive Package With Motor Included? | No |
| Drive Type | Belt Drive |
| Electrical Connection | Not Applicable |
| Features | High Volume, Low-Velocity Blower Meets Full Class 1 Performance |
| Finish | Galvanized |
| Flange Size | Not Applicable |
| For Air Type | General/Clean |
| For High-static Pressure Applications | Yes |
| For Location | Indoor |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Hazardous Location Application | No |
| Hazardous Location Specification | Not Applicable |
| Height | 46 3/4" |
| Housing Color | Silver |
| Housing Depth | 39 4/5" |
| Housing Height | 46.7" |
| Housing Material | Steel |
| Housing Material Finish | Galvanized |
| Housing Width | 31 1/5" |
| Includes | Blower Wheel, Galvanized Housing, Housing Support With Resilient Mounting Pad, Motor Mounting Bracket With Hardware Bag |
| Includes Drive Package | No |
| Includes Motor | No |
| Includes Mounting Hardware | Yes |
| Inlet Dia. | 21" |
| Inlet Diameter | 21" |
| Manufacturer Warranty Length | 1 yr. Limited |
| Material | Steel |
| Max. Ambient Temp. | 104°F |
| Max. Inlet Temp. | 150°F |
| Max. Motor Hp | 25 hp |
| Maximum Airflow | 30500 CFM |
|---|---|
| Maximum Fan Speed | 635 RPM |
| Maximum Motor Speed | Not Applicable |
| Maximum Static Pressure | 2 in. wc |
| Min. Motor Hp | 2 hp |
| Minimum Airflow | 9730 CFM |
| Minimum Ambient Temperature | -4°F |
| Minimum Fan Speed | 270 RPM |
| Minimum Motor Speed | Not Applicable |
| Motor Frame Designation | Not Applicable |
| Motor Hp | 2 hp to 25 hp |
| Motor Location | Not Applicable |
| Mount Type | Multiposition |
| Mounting Orientation | Multiposition |
| No. Of Inlets | 2 |
| Number Of Discharge Positions | 4 |
| Oem Replacement | Not Applicable |
| Outlet Dia. | Not Applicable |
| Outlet Height | 31 1/4" |
| Outlet Shape | Rectangular |
| Outlet Type | Non Flanged |
| Outlet Width | 31 1/4" |
| Overall Depth | 40" |
| Overall Height | 40" |
| Overall Width | 43 1/4" |
| Replacement For | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Rotation | CW/CCW |
| Shaft Dia. | 1 3/8" |
| Shaft Diameter | 1 7/16" |
| Sound Level | Not Rated |
| Spark Resistant Construction Type | Not Applicable |
| Speed Controllable | No |
| Thermal Overload Protection | Not Applicable |
| Type | Less Drive Package |
| Wheel Bore Diameter | 1 3/8" |
| Wheel Dia. | 24 7/8" |
| Wheel Material | Steel |
| Wheel Material Finish | Galvanized |
| Wheel Type | Forward Curved |
| Wheel Width | 25" |
| Width | 43 1/4" |
| Height (cm) | 101.6 |
|---|---|
| Length (cm) | 101.6 |
| Width (cm) | 109.86 |
| HS Code | 8414596060 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 162 |
