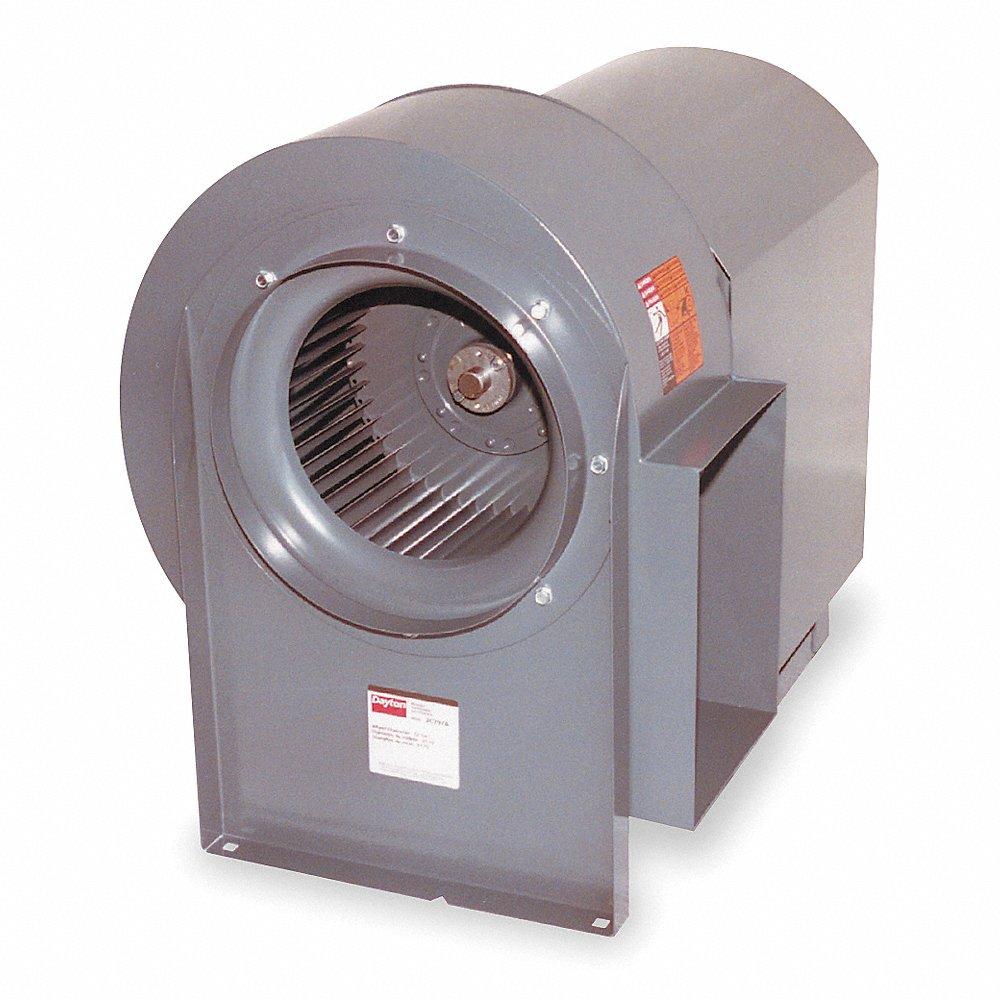

| Item | Blower |
|---|---|
| Amca Fan Class | I |
| Assembled/unassembled | Assembled |
| Assembly | Unassembled |
| Bearing Type | Pillow Block Ball |
| Depth | 32 3/8" |
| Discharge Height | 14 5/8" |
| Discharge Position | Bottom Angular Down, Bottom Angular Up, Bottom Horizontal, Down Blast, Top Angular Down, Top Angular Up, Top Horizontal, Up Blast |
| Discharge Width | 10 3/4" |
| Drive Package With Motor Included? | No |
| Drive Type | Belt Drive |
| Electrical Connection | Ground Wire |
| Height | 28 1/8" |
| Housing Color | Gray |
| Housing Material | Steel |
| Housing Material Finish | Gray Polyester Epoxy |
| Includes | Weatherproof Drive Cover |
| Includes Drive Package | No |
| Includes Motor | No |
| Inlet Dia. | 14 1/2" |
| Inlet Diameter | 14 1/2" |
| Manufacturer Warranty Length | 1 yr. Limited |
| Max. Motor Hp | 5 hp |
| Maximum Airflow | 4860 CFM |
| Maximum Fan Speed | 1279 RPM |
| Maximum Inlet Air Temperature | 250°F |
|---|---|
| Maximum Static Pressure | 2.5 in. wc |
| Min. Motor Hp | 1/2 hp |
| Minimum Airflow | 1585 CFM |
| Minimum Fan Speed | 634 RPM |
| Motor Frame Designation | 182T |
| Mount Type | Motor Mount |
| No. Of Inlets | 1 |
| Number Of Discharge Positions | 8 |
| Outlet Dia. | Not Applicable |
| Outlet Height | 14 5/8" |
| Outlet Shape | Rectangular |
| Outlet Type | Non Flanged |
| Outlet Width | 10 3/4" |
| Overall Depth | 32 3/8" |
| Overall Height | 28 1/8" |
| Overall Width | 24" |
| Rotation | CW |
| Shaft Dia. | 1" |
| Wheel Dia. | 13 1/2" , 13 11/16" |
| Wheel Material | Steel |
| Wheel Type | Forward Curved |
| Width | 24" |
| standard | AMCA AIR PERFORMANCE CERTIFIED, NEC, OSHA |
| Height (cm) | 71.44 |
|---|---|
| Length (cm) | 82.23 |
| Width (cm) | 60.96 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 63.45 |
