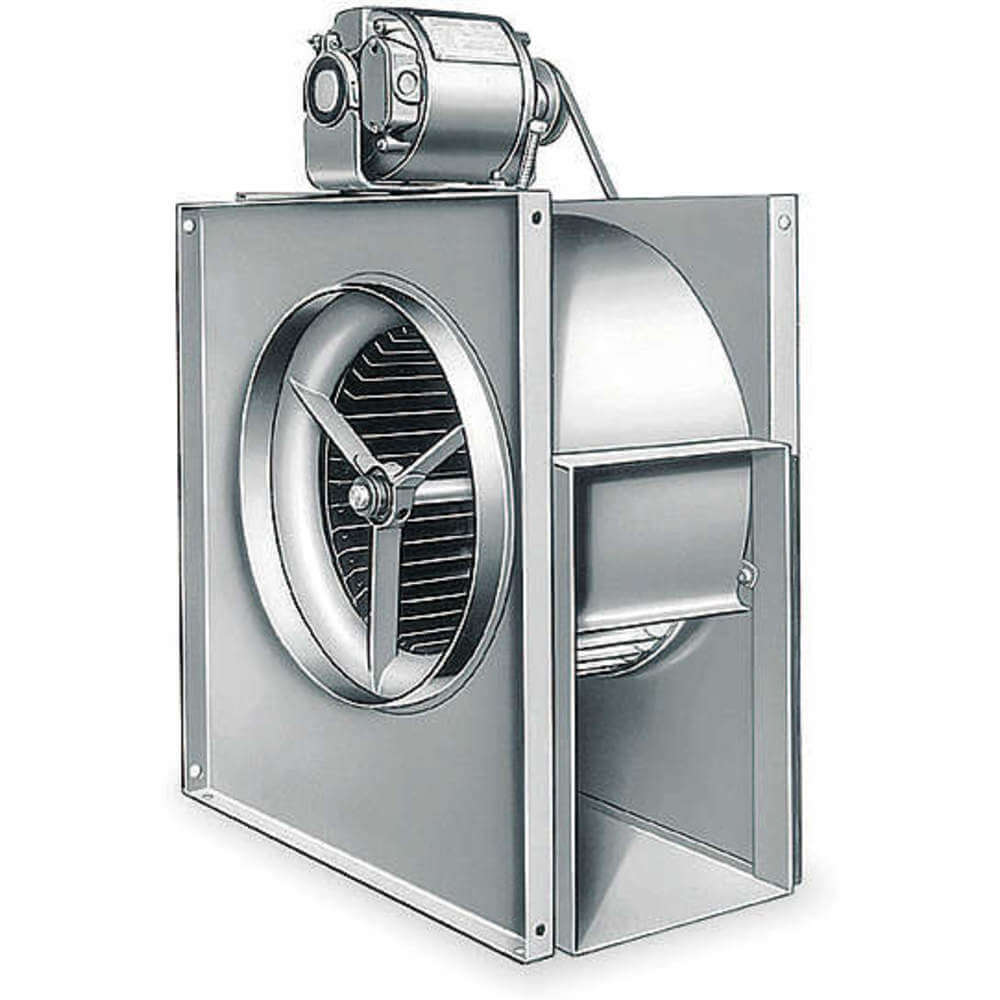

| Item | Blower |
|---|---|
| Airflow @ 0.000 In Sp | Not Applicable |
| Airflow @ 0.100 In Sp | Not Applicable |
| Airflow @ 0.125 In Sp | 1110 CFM |
| Airflow @ 0.250 In Sp | 1020 CFM |
| Airflow @ 0.500 In Sp | 830 CFM |
| Airflow @ 0.750 In Sp | 630 CFM |
| Airflow @ 1.000 In Sp | Not Applicable |
| Airflow @ 1.250 In Sp | Not Applicable |
| Airflow @ 1.500 In Sp | Not Applicable |
| Airflow @ 10.00 In Sp | Not Applicable |
| Airflow @ 11.00 In Sp | Not Applicable |
| Airflow @ 12.00 In Sp | Not Applicable |
| Airflow @ 13.00 In Sp | Not Applicable |
| Airflow @ 2.000 In Sp | Not Applicable |
| Airflow @ 2.500 In Sp | Not Applicable |
| Airflow @ 3.000 In Sp | Not Applicable |
| Airflow @ 3.500 In Sp | Not Applicable |
| Airflow @ 4.000 In Sp | Not Applicable |
| Airflow @ 4.500 In Sp | Not Applicable |
| Airflow @ 5.000 In Sp | Not Applicable |
| Airflow @ 6.000 In Sp | Not Applicable |
| Airflow @ 7.000 In Sp | Not Applicable |
| Airflow @ 8.000 In Sp | Not Applicable |
| Airflow @ 9.000 In Sp | Not Applicable |
| Amps | 1.2/0.6A |
| Assembled/unassembled | Unassembled |
| Assembly | Unassembled |
| Bearing Type | Ball |
| Blower Rpm | 1030 RPM |
| Cfm @ 0.125-in. Sp | 1040 CFM |
| Cfm @ 0.250-in. Sp | 950 CFM |
| Cfm @ 0.500-in. Sp | 780 CFM |
| Cfm @ 0.750-in. Sp | 590 CFM |
| Dimension A | 15 7/16" |
| Dimension B | 14 5/8" |
| Dimension C | 7 3/16" |
| Dimension D | 11/16" |
| Dimension E | 10 1/4" |
| Dimension F | 10" |
| Dimension G | 8 3/4" |
| Dimension H | 8 5/8" |
| Dimension J | 8 7/8" |
| Dimension K | 6 1/2" |
| Dimension L | 16 1/8" |
| Dimension M | 6 5/16" |
| Dimension R | 3/4" |
| Dimension S | 1 15/16" |
| Dimension T | 1 1/16" |
| Dimension X | 1/4" |
| Dimension Y | 13/16" |
| Dimension Z | 1/2" |
| Discharge Height | 10 1/4" |
| Discharge Height (in.) | 10.25" |
| Discharge Width | 6 1/2" |
| Discharge Width (in.) | 6.5" |
| Drive Package With Motor Included? | Yes |
|---|---|
| Drive Type | Belt Drive |
| Flange Size | Not Applicable |
| Frequency | 50/60 Hz |
| Housing Color | Gray |
| Housing Depth | 14 5/8" |
| Housing Height | 16 1/8" |
| Housing Length | 14 5/8" |
| Housing Material | Steel |
| Housing Material Finish | Gray |
| Housing Width | 8 3/4" |
| Includes Drive Package | Yes |
| Includes Motor | Yes |
| Inlet Dia. | 10" |
| Inlet Diameter | 10" |
| Manufacturer Warranty Length | 1 yr. Limited |
| Material | Steel |
| Max. Ambient Temp. | 104°F |
| Max. Blower Rpm | 1450 RPM |
| Max. Inlet Temp. | 150°F |
| Maximum Fan Speed | 1450 RPM |
| Maximum Static Pressure | 0.75 in. wc |
| Minimum Fan Speed | 1030 RPM |
| Motor Duty Class | Continuous |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Designation | 48Z |
| Motor Horsepower | 1/3 hp |
| Motor Hp | 3333/10000 hp |
| Motor Insulation Class | Class B |
| Motor Speed | 1725 RPM |
| Motor Type | Split Phase |
| Mounting Orientation | Horizontal |
| Mounting Position | Blower Shaft Horizontal |
| Nameplate Voltage | 230/460V AC |
| No. Of Inlets | 1 |
| Number Of Speeds | 1 |
| Oem Replacement | No |
| Outlet Dia. | Not Applicable |
| Outlet Height | 10 1/4" |
| Outlet Shape | Rectangular |
| Outlet Type | Non Flanged |
| Outlet Width | 6 1/2" |
| Overall Depth | 8 7/8" |
| Overall Height | 16 1/8" |
| Overall Width | 14 5/8" |
| Phase | 3 |
| Rotation | CW |
| Shaft Dia. | 3/4" |
| Standards | UL/CUL Listed |
| Type | Belt Drive, Single Inlet Forward Curve With Drive Package |
| Voltage | 230/460V |
| Wheel Dia. | 9 1/2" |
| Wheel Material | Steel |
| Wheel Type | Forward Curved |
| Wheel Width | 4 1/2" |
| Height (cm) | 40.96 |
|---|---|
| Length (cm) | 22.54 |
| Width (cm) | 37.15 |
| HS Code | 8414599080 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 20.6618 |
